MIRA 5 S Super
NL-M5S-S30-R-TUV
Product Description
The MIRA 5 S Super has a work area of 500*300mm
Popular upgrades
12-16 week Lead time
Available Accessories
Your label
MIRA 5 S Super
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product detail
Elite vs Super
The MIRA S is available in two configurations with various laser powers.
The Elite comes packed with a cutting-edge DC laser source and high-speed hybrid stepper motors, letting you zoom through projects at an impressive 1200mm/s. It's your go-to for smooth, reliable engraving that gets the job done—fast.
But if you’re all about pushing the limits, then the Super is your perfect match. With AC servos and a metal RF-driven laser source, this beast cranks up the speed to a blazing 4200mm/s. It’s engineered for those who want the absolute best in speed, precision, and performance.
So, whether you’re cruising with the Elite or racing ahead with the Super, you're guaranteed an engraving experience that's nothing short of legendary!
Note: The ULTRA is only available with the Mira 7 or larger
MIRA S Redline Features
- Power Performance - High Speed: 1200 mm/s / 4200mm/s for engraving Acceleration: 5/8G Material: Wood, glass, paper, leather, textiles, acrylic
- Intelligent Detection and Diagnosis System - The working status of the laser machine can be visualized by the intelligent detection and diagnosis system. Key parameters such as water temperature, current, air pressure, these can be accessed through the panel. Protect yourself and your device at any time.
- Alignment-Free Optical Path Design - Replacing optical accessories quickly (laser tube/mirrors/lens) will not change the optical path.
- All-in-one Design - All the external accessories (air compressor/chiller/air blower) are built-in.
- Multi-Functional Work Table - Both cutting and engraving could be performed on one working table.
- Magnetic Design - Allow for the direct exchange of lenses.
- Fully Enclosed Dust-proof Guide Rail - Fully sealed linear guide protects the guide rail and light path from dust, reduces maintenance frequency.
- High-resolution Lightburn Camera - Positioning your artwork on your workpiece. Import your artwork into LightBurn, and easily position your objects by dragging and dropping them onto the work area image.
Specifications
- Working Area: 500*300mm
- Machine Dimensions(mm): 900*700*410mm
- Max. Engraving Speed：Elite 1200mm/s, Super 4200mm/s
- Max Acceleration Speed：5G /8G
- Max. lifting capacity: 15kg
- Net Weight (N.W): 110KG
- Gross Weight (N.W): 125KG
- Package Size：1000*800*580mm
- Control & Software:RDWorks & Lightburn Software
- Graphic Format Supported: DSP/PLT/BMP/DXF/AI/DWG
Package Contents
- Honeycomb Table *1
- Accessories Box*1
- Cleaning tools *1
- Network Cable 5M *1
- Data Cable 3M *1
- Hexagon Wrench *1
- Air Exhaust Pipe 5M *1
- Key Switch *2
- Pipe Hoop *2
- USB cable mira camera
- male on both ends *1
- Lens Removal Tool *1A
- USB Flash Disk *1
- Funnel *1
- Rail lubricant *1
- MIRA dimming target *1
- Pipe clamp *1
- Ventilation duct flange *1
- Timing belt*1
Whats in the box
HoneyComb Table
Air Exhaust Pipe (5m)
Network Cable (5m)
Data Cable (3m)
USB Stick
Key Switch (x2)
Alignment Targets
Cleaning tools
Maintenance Set
Distilled Water

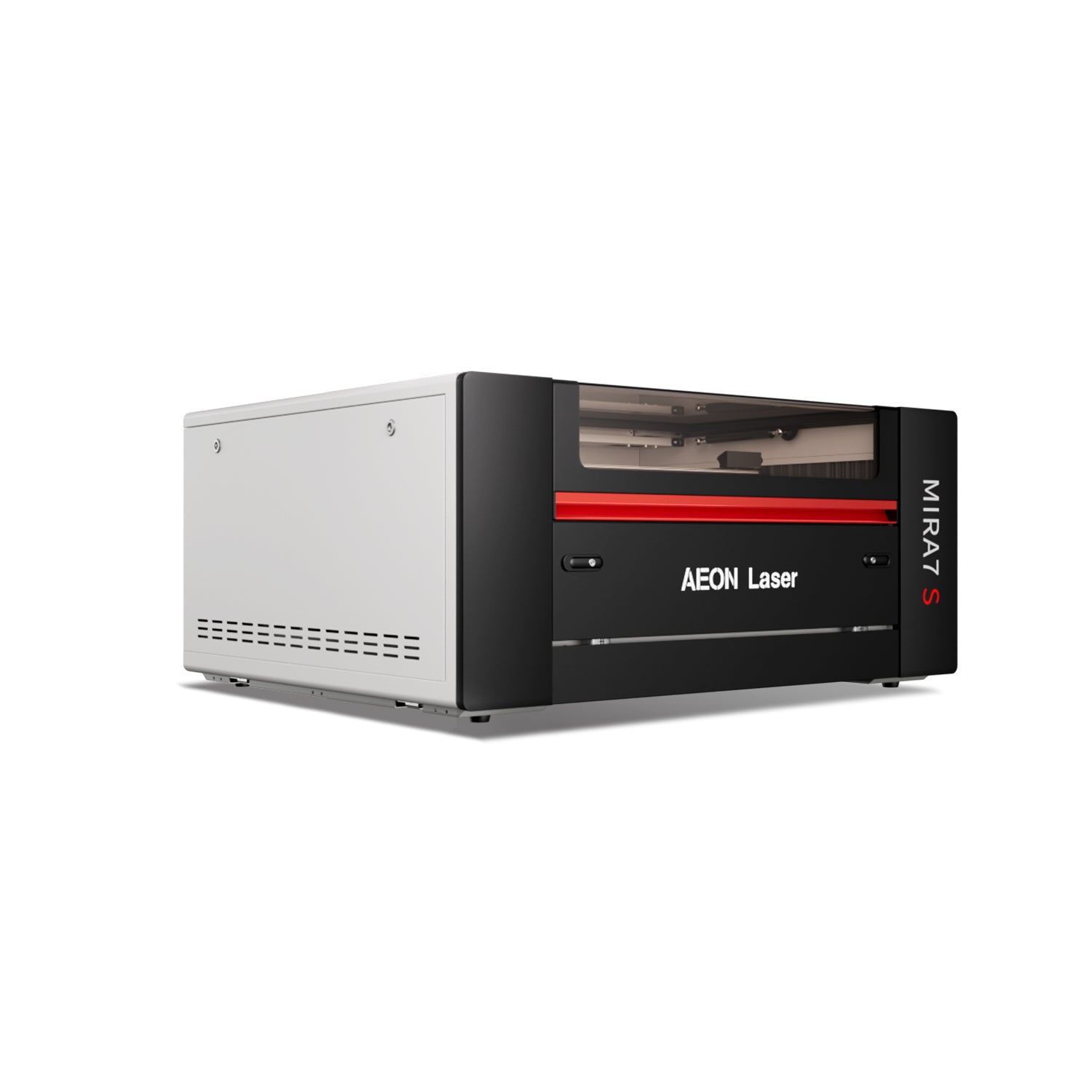

MIRA S - Redline
Ultra compact integrated design, with built-in refrigeration water tank, fan, and air pump fully enclosed body, Class I laser standard design and manufacturing, safer 8G acceleration, 4.2m/s high-speed engraving, higher efficiency, dustproof, high-speed linear module, zero wear and tear on guide rail movement, and maximum reduction of maintenance costs

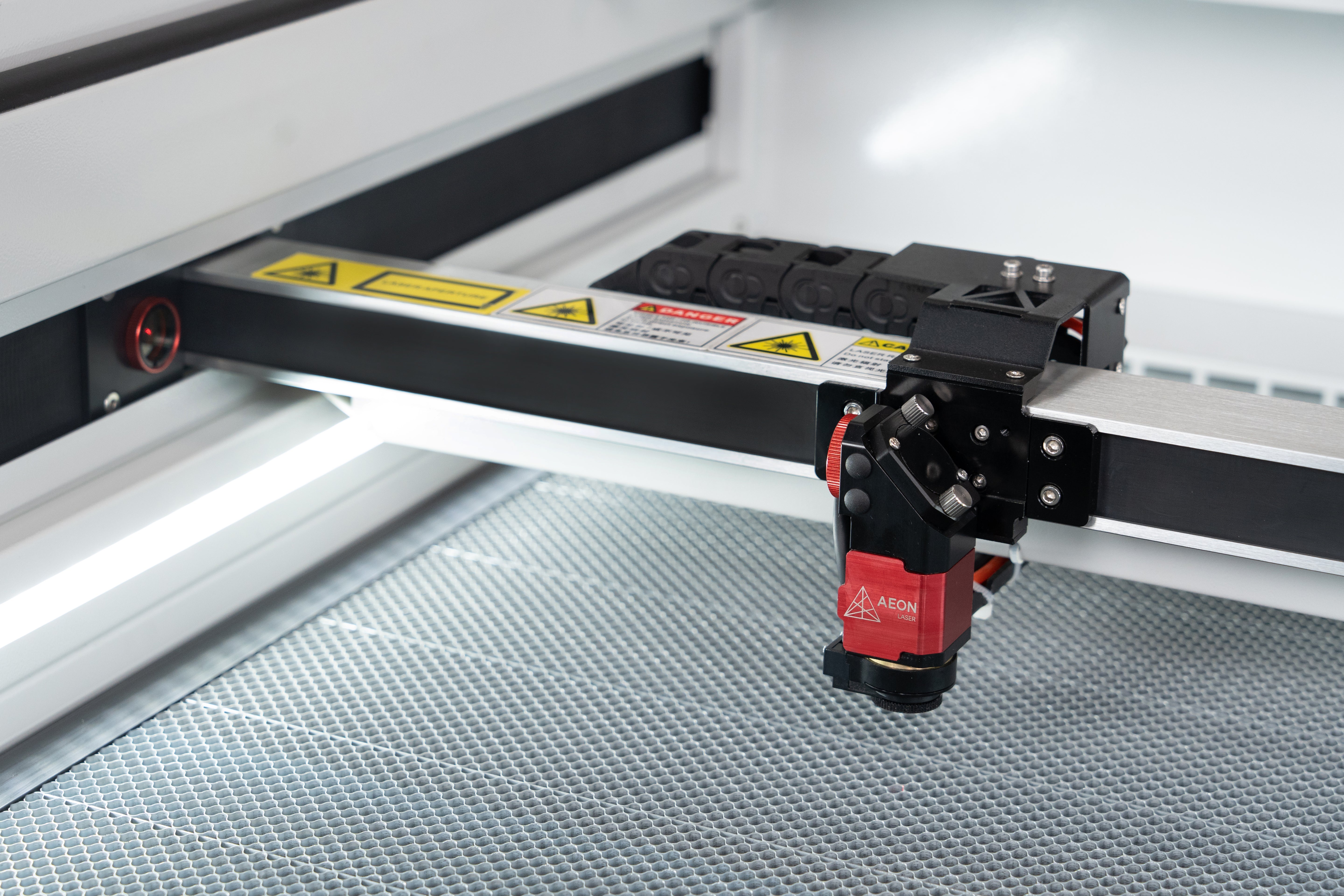

CleanPack Technology
The dustproof high-speed linear module ensures smooth rail movement with zero wear, reducing maintenance needs. This design minimizes downtime and maintenance costs while maintaining high-speed performance.

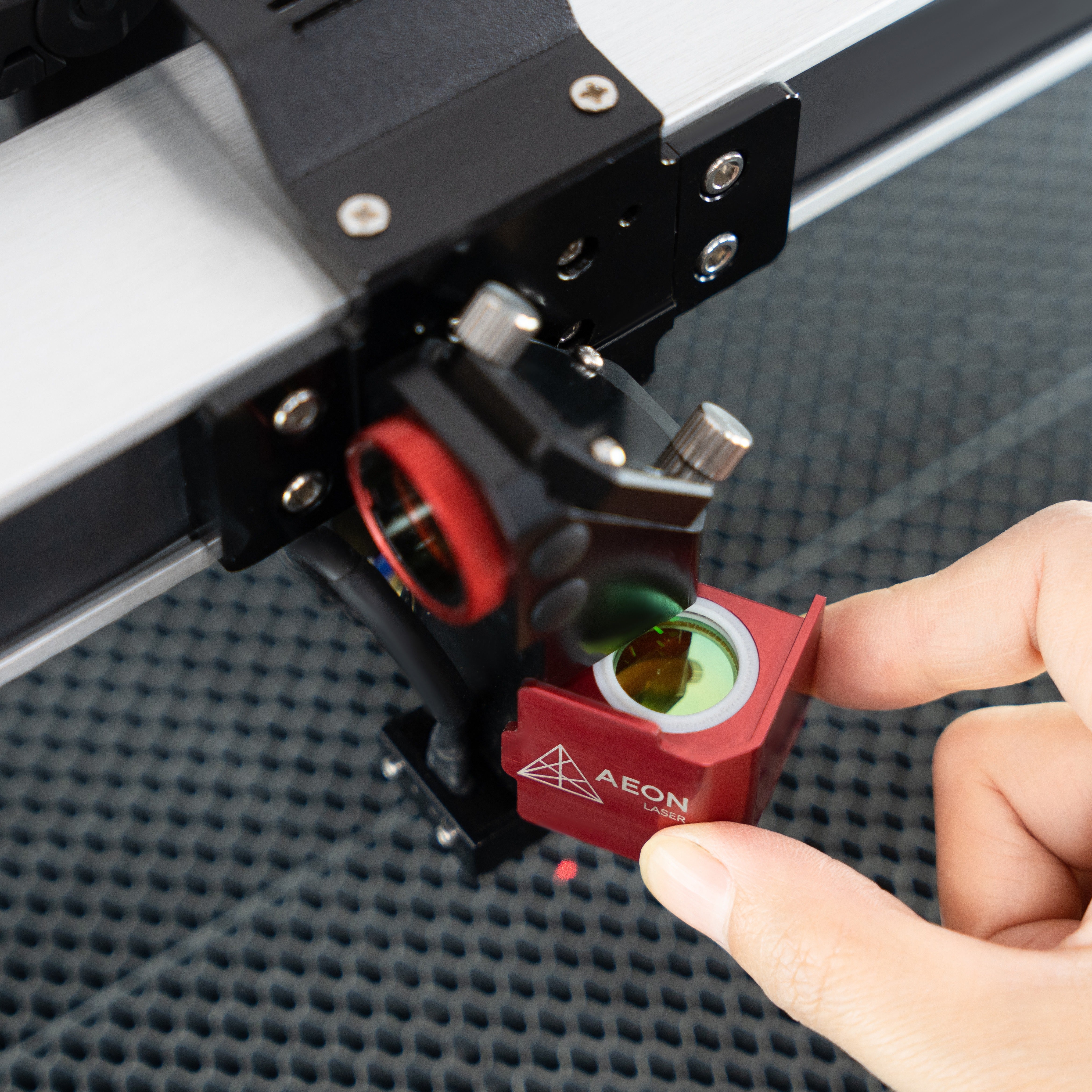

QuickSwap Lens
Easily swap lenses without tools to optimize cutting and engraving with different focal lengths. A built-in thermal sensor monitors lens lifespan, alerting you when it's time for cleaning or replacement to maintain peak performance and precision.

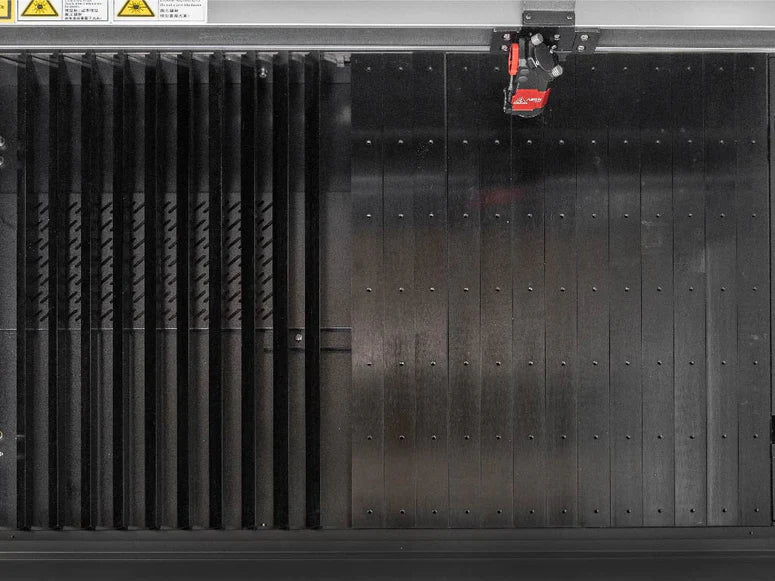

Multiple Beds
The honeycomb blade dual platform provides balanced support for carving and cutting across various soft and hard materials. Its design ensures stability, precision, and efficient airflow for cleaner cuts and enhanced material handling

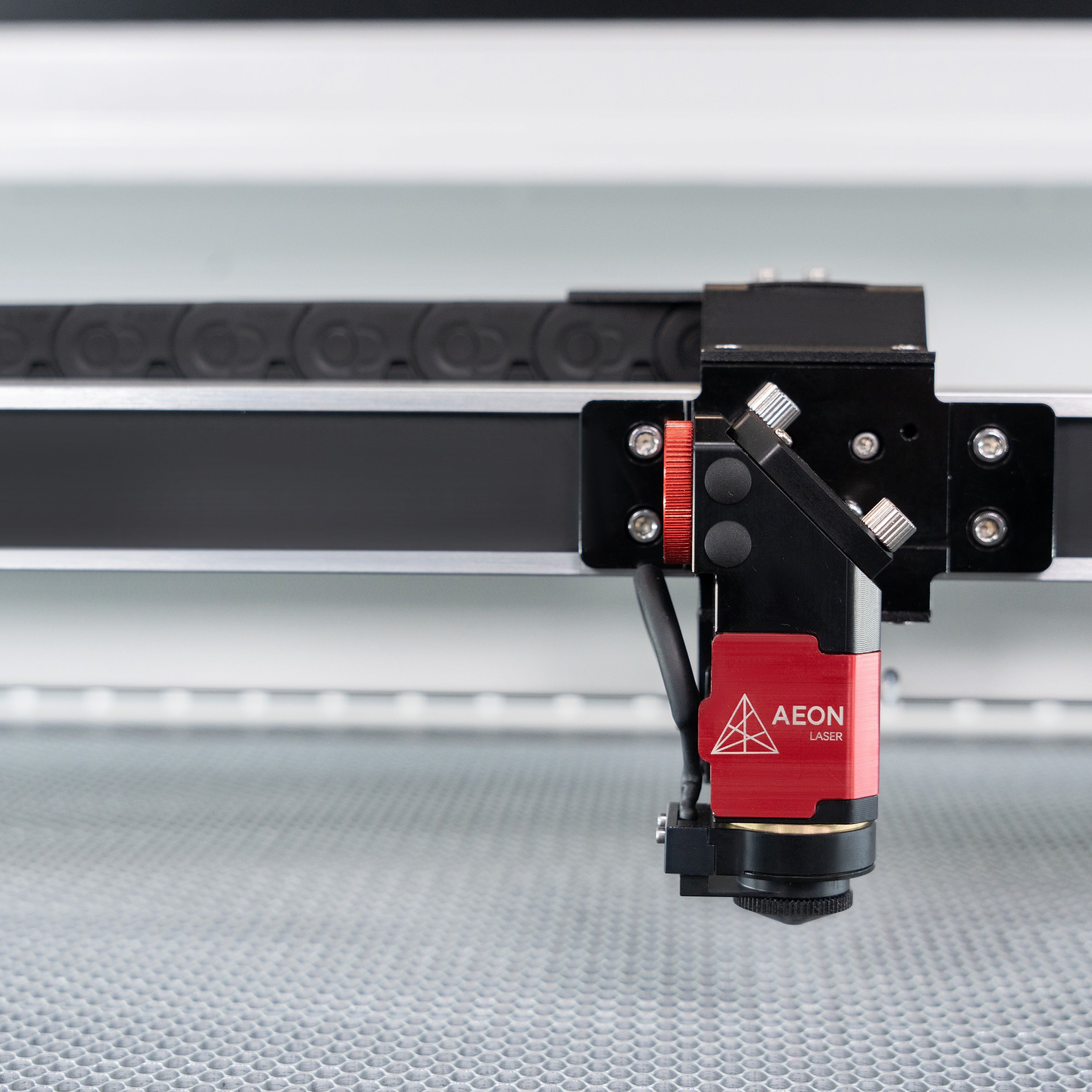

Auto Focus
No hassle focus with the integrated nozzle focus. Simply place the head over the material and press autofocus.
FAQs
Please read our FAQs page to find out more.
What makes the Redline S series different?
- AC servo motors (faster + more precise)
- Integrated autofocus
- Built-in camera
- Modular tube system (tool-free swap)
- Improved dust protection (“Super Clean Pack”)
Does it have a camera?
Yes, it comes with the Lightburn camera as standard. (Requires USB connection to PC)
Does it support rotary engraving?
Yes, compatible with multiple rotary attachments.
We offer and support several versions, but any rotary with a standard stepper motor connection could be made to work.
Does it have a pass-through?
Yes, it is possible to use pass-through for longer materials.
The AeonLaser NL difference?
All machines from AeonLaser NL are the upgraded TUV version.
